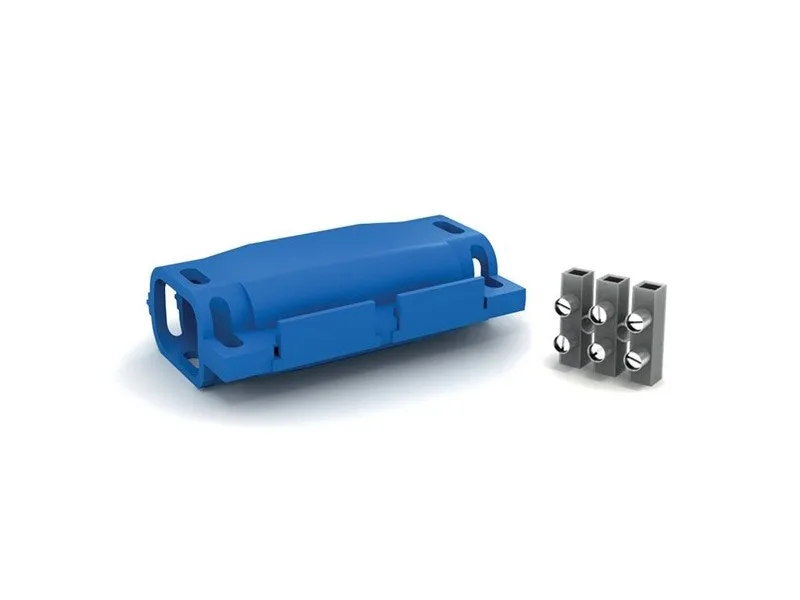

Wiska SH0315W SHARK 40x72x23mm, IPX8 Pre-filled Gel Joint Complete with 3 Core 5A Terminal Block Blue

Product Description

SHARK Classic Series gel insulated joints can be used to make straight connections on 0.6/1 kV single or multicore low voltage cables with up to five cores.
Thanks to the greater space available inside the joint, the versions without terminal blocks are suitable for straight connection of single-core cables, and for the connection and insulation of electronic boards and components.
The versions with terminal block allow straight connection with double insulation of cables with up to fve cores and are available upon request with tin-plated aluminium connectors for copper-copper, aluminium-aluminum, and copper-aluminium connections.

Features

• Material: Polyamide
• Filling: Silicone
• Temp. range min: -20 °C
• Temp. range max: 90 °C
• Glow wire test: self-extinguishing
• Voltage: 0.6 kV - 1 kV
• Ampere: 5
• Cable Size: 3 core
• LxBxH: 40x72x23 mm

Data Sheet:
