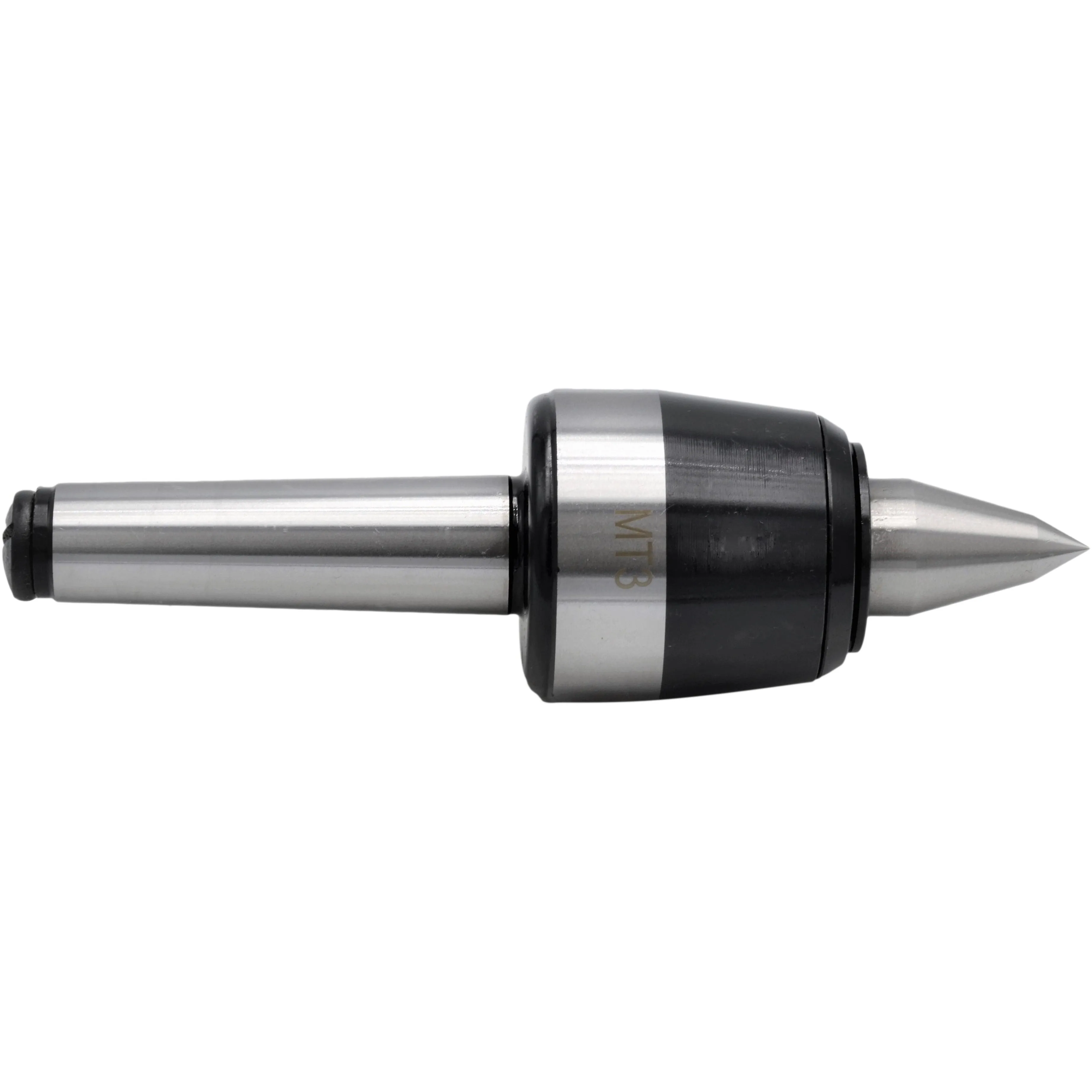

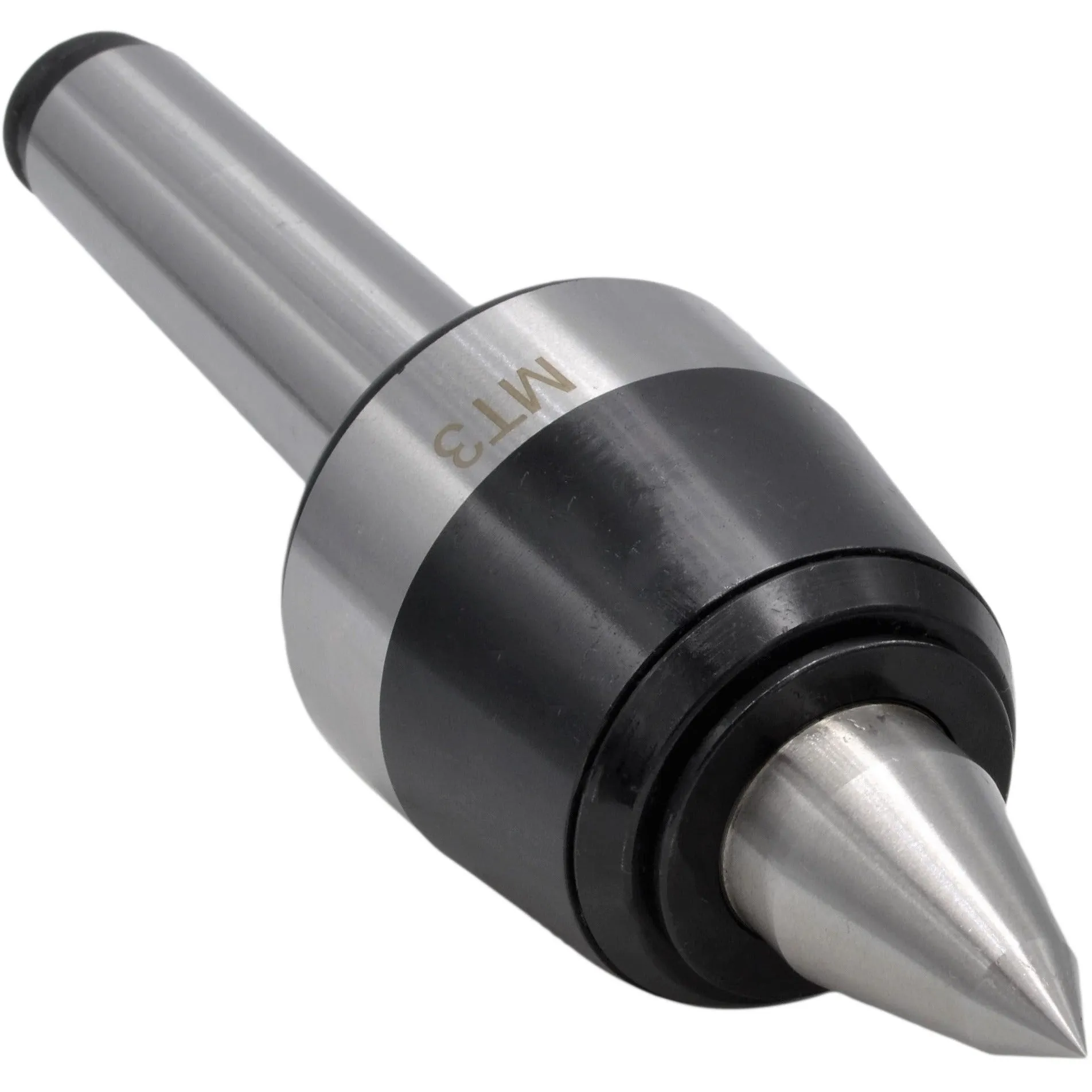

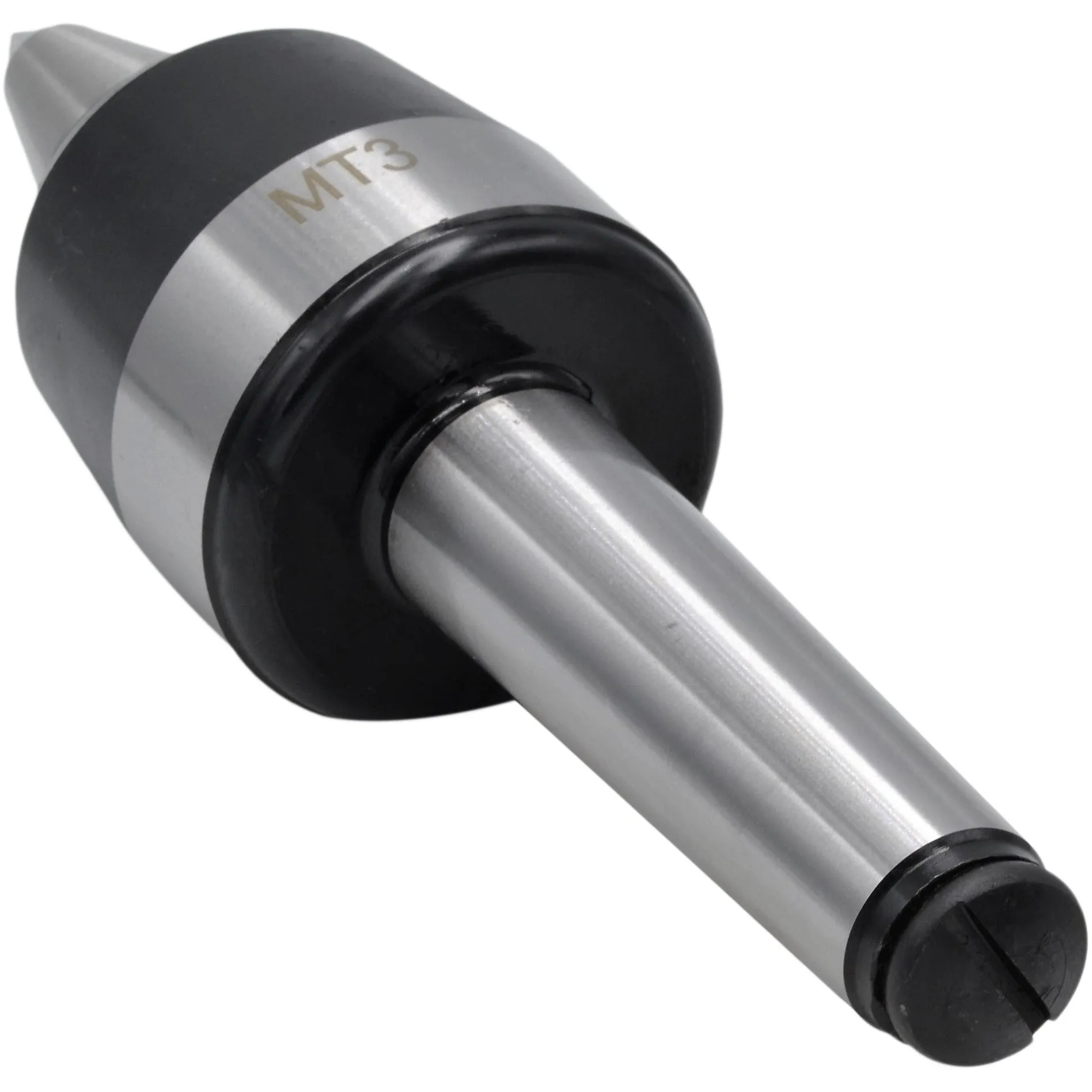

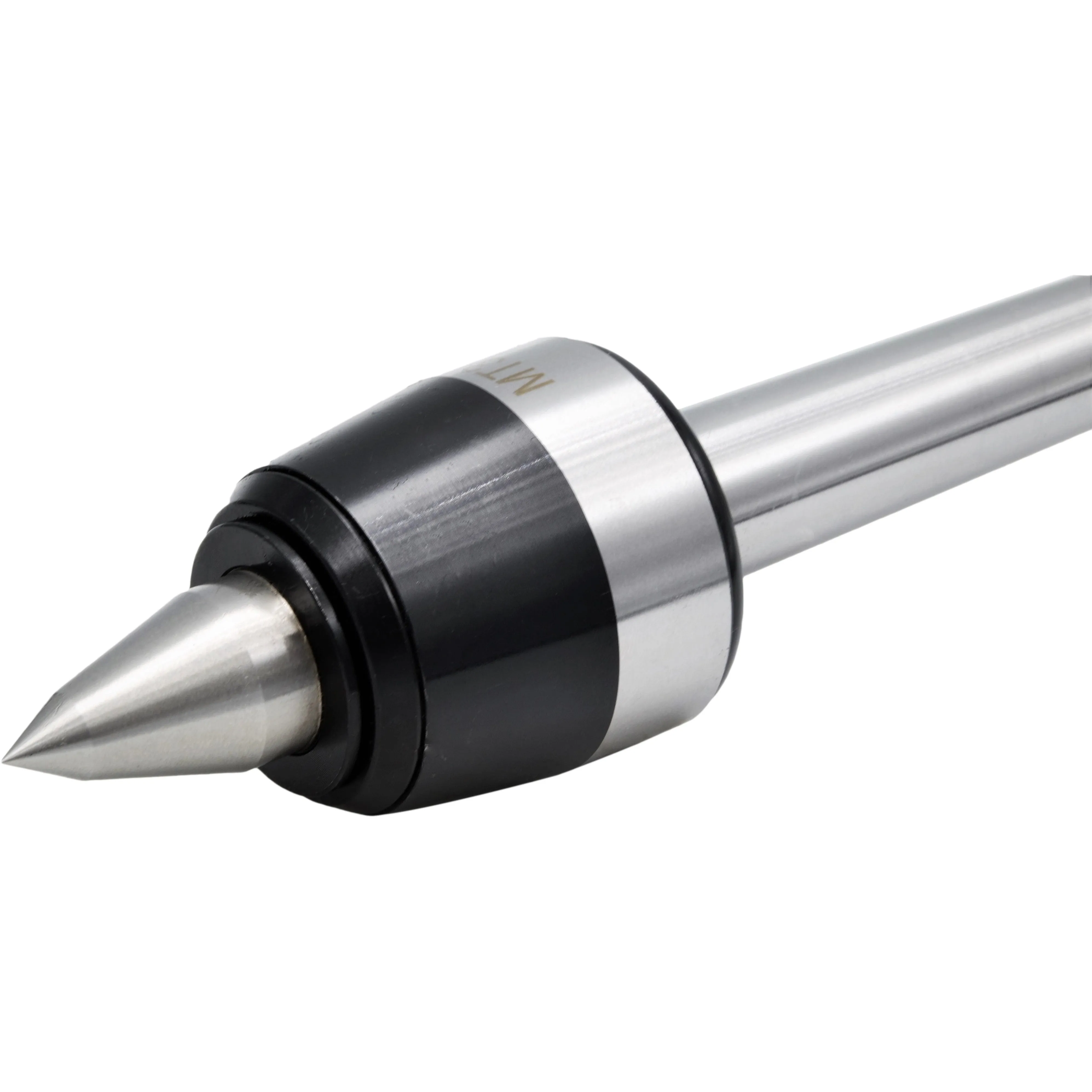

Morse Taper 3 Extended Nose Precision High Speed Live Centre
Triple ball bearing design incorporating a dust seal limiting ingress from coolant and debris thereby extending tool life.Expanding on that a skeleton seal ring is fitted to further protect the interior components from external ingress. With an extended mandrel head it is perfect for processing small parts or end faces and improves overall efficiency.
- Shank Size: Morse taper 3
- Part No:DJ-LO8026/MT3
- Max RPM: 4000
- Accuracy: 0.005 mm
- Load Capacity: 500 kg
- 60 Degree Centre Point
- Triple bearing
- M12 Drawbar thread with cap

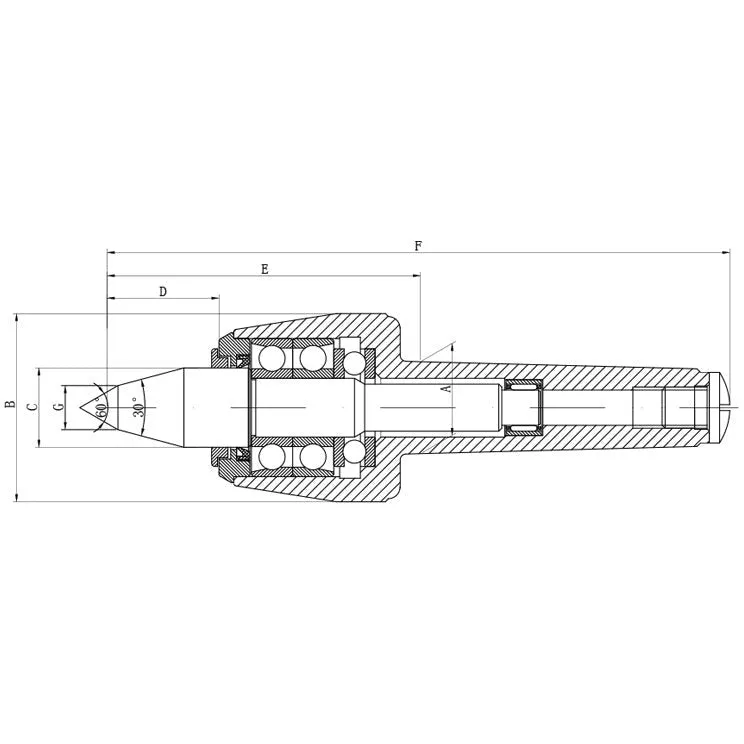

Model A(ø:mm) B(ø:mm) C(ø:mm) D(mm) E(mm) F(mm) G(ø:mm) MT2 17.780 42 16
29
76
140 8
MT3 23.825 54 24 41 103 184 12 MT4 31.267 64 28
48 120 223 15 MT5 44.399 69
32
55
128 258 18
