Item Description
Note: Hamamatsu P13243 series detectors have gone end of life. Only our remaining inventory can be purchased, there are no orders avaible from the factory for these parts.
For purchase and shipment only in North America (USA, Canada, Mexico). Please contact your local Hamamatsu office in other countries.
Sensitive, room temperature, 1TE or 2TE cooled, 2x2 mm MWIR detectors. Detectors are RoHS compliant InAsSb devices, and can directly replace detectors containing lead, mercury, or cadmium. They are packaged in a TO-5 or TO-8 housing. Select your device in the pull-down menus above.
Applications include gas sensing, radiation thermometers and flame detection.
Features
- High sensitivity
- High-speed response
- High shunt resistance
- RoHS compliant (lead, mercury, cadmium free)
Please contact us to discuss your specific needs and to ensure you have selected the best detector for your measurement needs. [email protected] 1-617-566-3821
Product Technical Specs
- Summary product specifications are below
- View and download the detailed product sheet at the Download PDF tab
- Please contact us with any questions for or assistance via our or at 617-566-3821
| Detector | |
| Part Number | P13243-022MS (TO-5), -122MS/-222MS (TO-8) |
| Type | Photovoltaic InAsSb detector |
| Cutoff Wavelength | 5.1 - 5.3um |
| Peak wavelength | 4.1um |
| Cooling | Room temperature (-011MS), 1TE (-122MS) or 2TE (-222MS) |

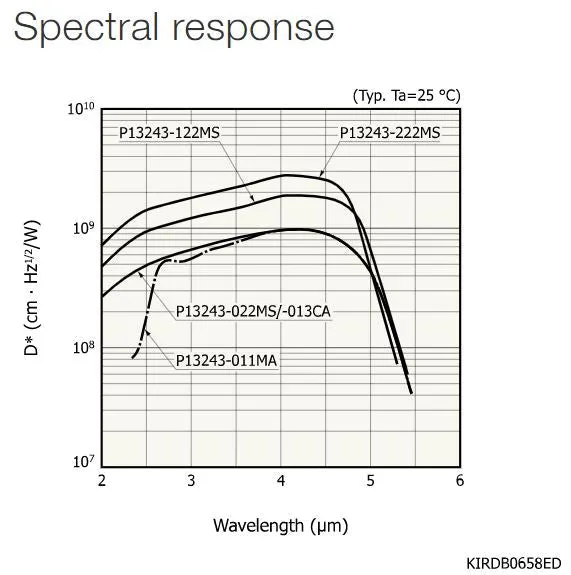

| Detectivity | D* = 10E9 (-011MS), 1.9E9 (-122MS), 2.9E9 (-222MS) |
| Rise time | 100ns |
| Detector Size | 2 x 2 mm2 |
| Window | Al2O3 |
| Package | TO-5 or TO-8 |
